Facility layout design has a direct and significant impact on contamination control outcomes. The physical arrangement of entry points, traffic routes, transition zones, and controlled areas determines where contaminants enter, how far they travel, and how effectively they can be intercepted. For organisations operating in regulated environments, layout decisions are not merely architectural; they are a frontline defence against contamination risk. The questions below address the most critical layout factors that quality, EHS, and facilities managers need to consider.
Which facility entry points carry the highest contamination risk?
The highest contamination risk points in any facility are personnel entry points, vehicle access routes, and material transfer zones. These are the locations where outside environments intersect with controlled spaces, and where foot and wheel traffic introduces the greatest volume of particulate, microbial, and chemical contaminants. Industry experience consistently shows that around 80% of contaminants enter controlled environments at floor level.
Personnel entrances, particularly those leading directly into gowning rooms, airlocks, or cleanroom corridors, are among the most critical risk points. Staff moving between uncontrolled and controlled zones carry contaminants on footwear and clothing with every step. Similarly, loading bays, goods-in areas, and internal logistics routes used by forklifts, pallet trucks, and wheeled carts represent high-volume contamination vectors that are frequently underestimated in facility planning.
Material transfer zones, where components or raw materials pass from external storage into production areas, also carry elevated risk. Even when materials are packaged, the equipment and personnel involved in that transfer can introduce particulate. Identifying and mapping these entry points is the essential first step in designing an effective contamination control strategy.
How does traffic flow design reduce contamination spread?
Traffic flow design reduces contamination spread by creating defined, directional movement patterns that separate clean and unclean zones, minimise cross-traffic, and ensure that contaminants are intercepted at designated control points before they can migrate deeper into the facility. A well-designed flow routes personnel and equipment through sequential decontamination stages rather than allowing unrestricted access.
Unidirectional flow, where personnel and materials move in a single direction from lower-cleanliness to higher-cleanliness areas, is a foundational principle in cleanroom design. This approach prevents the backflow of contamination and reduces the likelihood of personnel bypassing control measures. When traffic flows are poorly defined or allow shortcuts between zones, contaminants bypass interception points entirely.
Separating pedestrian and wheeled vehicle routes where possible also significantly reduces cross-contamination. Forklifts and pallet trucks operating in the same corridors as gowned personnel create turbulence that can lift settled particulate back into the air. Designing distinct routes for heavy traffic and light personnel movement reduces this risk and allows for targeted contamination control measures at each type of access point.
What role do contamination control zones play in facility layout?
Contamination control zones are defined areas within a facility layout that create graduated levels of cleanliness, each with specific entry requirements, hygiene protocols, and physical barriers. They function as a layered defence system, ensuring that contaminants are progressively reduced as personnel or materials move closer to the most sensitive production or storage areas.

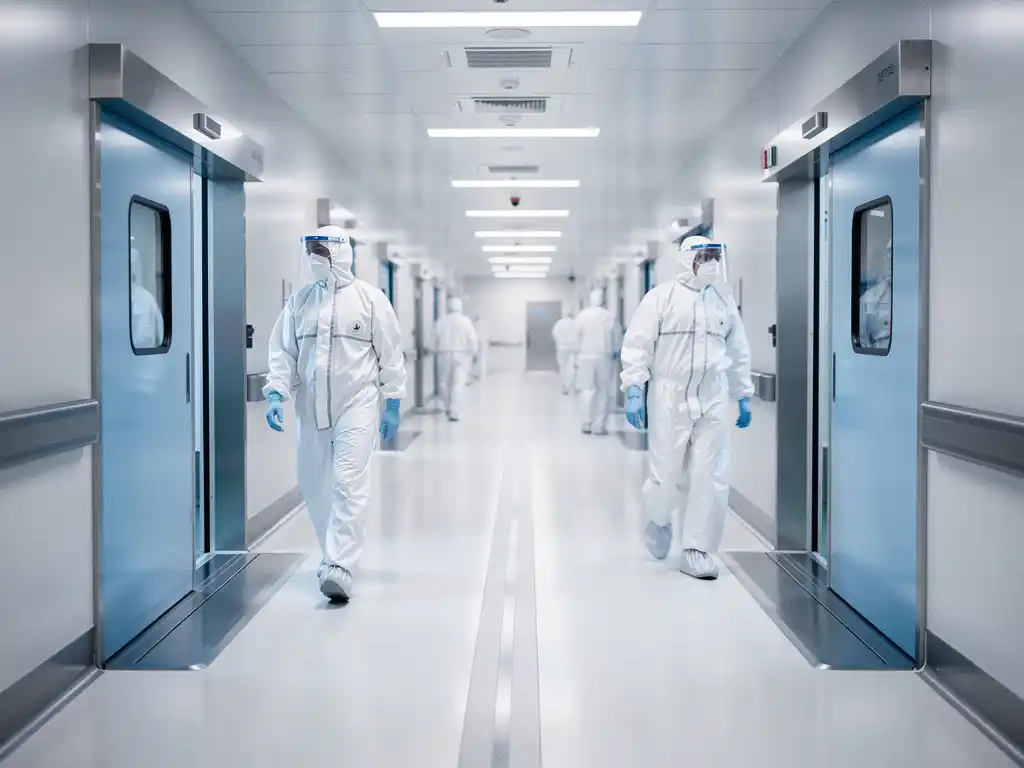

In practice, zones typically progress from general facility areas through gowning rooms, airlocks, and anterooms into the cleanroom or controlled environment itself. Each transition between zones represents an opportunity to intercept contaminants before they advance further. The effectiveness of this system depends entirely on how well the physical layout enforces zone boundaries, through design features such as interlocking doors, pressure differentials, and strategically placed contamination control measures at every transition point.
Facilities that blur zone boundaries, whether through poor spatial planning, insufficient transition areas, or inadequate entry controls, undermine the entire contamination control hierarchy. Even a single uncontrolled crossing point between zones can compromise the cleanliness of the entire controlled area, with consequences for product quality, audit outcomes, and regulatory compliance.
Where should contamination control mats be positioned in a facility?
Contamination control mats should be positioned at every point where personnel or wheeled equipment transition between cleanliness zones, specifically at facility entrances, gowning room entries, cleanroom airlocks, critical corridors, and any internal doorway separating a controlled environment from a less controlled area. Placement at these transition points intercepts contaminants before they advance.
For pedestrian routes, mats positioned immediately before gowning rooms ensure that footwear contaminants are captured before staff enter the gowning process itself. Placing mats at cleanroom entrances provides a secondary capture point after gowning, addressing any particulate picked up during the gowning process. This layered placement approach reflects how contamination control works most effectively, through multiple interception points rather than a single barrier.
For wheeled traffic routes, mat placement at loading bay entries, goods-in areas, and internal logistics corridors addresses the high particulate load carried by vehicle wheels. Heavy-duty zones require mats engineered to withstand the weight and frequency of forklift and pallet truck traffic without compromising their capture performance. In facilities with variable or expanding layouts, repositionable mat solutions allow contamination control to adapt as floor plans evolve, without requiring permanent installation.
The specific dimensions and format of mats should be matched to the width of the entry point and the volume of traffic passing through it. A mat that does not span the full width of a doorway or corridor leaves a gap through which contaminants can pass unchallenged. Consulting with a contamination control specialist ensures that mat sizing and placement align with the actual traffic patterns and risk profile of the facility.
How does facility layout affect GMP and ISO compliance audits?
Facility layout directly affects GMP and ISO compliance audit outcomes because auditors assess whether the physical environment supports contamination control in a systematic, documented, and verifiable way. A layout that lacks defined zones, clear entry controls, or documented contamination prevention measures at critical transition points will raise non-conformances regardless of the procedures in place on paper.
Under GMP frameworks, including those governed by the FDA, EMA, and national medicines regulators, cleanroom design must demonstrate that contamination risks have been identified, assessed, and controlled through both procedural and physical means. A facility layout that routes personnel through uncontrolled areas before entering a cleanroom, or that lacks physical barriers between cleanliness grades, will struggle to satisfy auditors that contamination risk has been adequately managed.
ISO standards, particularly ISO 14644 for cleanrooms and controlled environments, specify requirements for the design and classification of controlled spaces. These standards inform how zones are defined, how airflow and pressure differentials are managed, and how entry controls are structured. Facilities whose layouts were designed with these standards in mind are far better positioned to demonstrate compliance than those where contamination control has been added retrospectively without reference to the underlying layout logic.
Auditors also look for evidence that contamination control measures are consistently applied and maintained. A well-designed layout makes consistent application easier; when control points are logically placed and unavoidable, compliance becomes the path of least resistance for all personnel.
Should contamination control infrastructure be built into the original layout or retrofitted?
Contamination control infrastructure should ideally be built into the original facility layout, as this produces the most effective and cost-efficient outcomes. Designing entry controls, zone transitions, and mat placement into the facility from the outset allows the physical environment to enforce contamination control naturally, without the compromises that retrofitting often requires. That said, effective contamination control can be retrofitted into existing facilities with the right approach.
When contamination control is integrated at the design stage, architects and facilities managers can ensure that transition zones are appropriately sized, that traffic flows are logical and unidirectional, and that control points are positioned where they will be most effective. Entry points can be designed to accommodate contamination control mats at the correct dimensions, and zone boundaries can be reinforced through architectural features rather than added as afterthoughts.
Retrofitting contamination control into an existing facility is a common requirement; many organisations inherit layouts that were not designed with current cleanliness standards in mind, or their operations have evolved beyond the original facility specification. In these situations, a thorough assessment of existing traffic flows, entry points, and zone boundaries is essential before selecting and positioning control measures. Flexible solutions, including repositionable mats and modular zone configurations, can significantly improve contamination control in facilities where permanent structural changes are not practical.
Whether designing from scratch or improving an existing layout, the principle is the same: contamination control measures must be matched to the actual risk profile of the facility, not applied generically. A site survey conducted by a specialist with experience across multiple facility types and regulatory environments will identify the highest-priority interventions and ensure that resources are directed where they will have the greatest impact.
How Dycem helps with facility layout contamination control
Dycem’s contamination control mat systems are engineered to integrate with any facility layout, providing targeted particulate capture at the entry points and transition zones where contamination risk is highest. Key capabilities include:
- Up to 99.9% particulate capture at floor level, addressing the primary contamination vector in controlled environments
- Biomaster silver-ion antimicrobial technology built into every mat, inhibiting microbial growth by up to 99.9%
- Purpose-built product range covering pedestrian zones (Dycem CleanZone), heavy wheeled traffic (Dycem WorkZone), and variable or temporary zones (Dycem Floating Mats)
- Customisable sizing and format to match the dimensions and traffic volumes of any entry point or corridor
- 3 to 5 year product lifespan, reducing the recurring cost and waste associated with disposable sticky mat alternatives
- ISO-certified manufacturing meeting EN ISO 9001 and 14001 standards, supporting audit readiness and regulatory compliance
Dycem’s contamination control specialists work with quality, EHS, and facilities teams to assess facility layouts, map contamination risk points, and recommend the right combination of products and placement strategies. To arrange a free site survey and consultation, contact Dycem today.
