Mapping high-risk contamination zones on a cleanroom floor starts with identifying the points where contaminants are most likely to enter, accumulate, or travel further into the controlled environment. These are typically entry and exit points, transition zones between classified areas, and any location where personnel or wheeled equipment cross from uncontrolled to controlled spaces. The sections below address the key questions facility managers ask when building or refining a contamination zone map.
What makes certain areas of a cleanroom floor higher risk than others?
Certain cleanroom floor areas carry higher contamination risk because they act as transfer points where particles, microbes, or debris move from less controlled spaces into critical zones. The level of risk is determined by traffic volume, the type of activity taking place, and the proximity of that area to the most sensitive parts of the controlled environment.
Floor zones at cleanroom entry points are consistently the highest risk because every person or piece of equipment entering the space brings contaminants with them. Research in contamination control consistently shows that around 80% of particulate contamination in controlled environments enters at floor level, carried on footwear and wheels. This makes the floor at entry and transition zones the single most critical surface to manage.
Beyond entry points, risk is also elevated in areas where:
- Traffic density is high, such as gowning rooms, airlocks, and main corridors
- Wheeled equipment such as trolleys, pallet trucks, or forklifts regularly crosses between zones
- Personnel change footwear or gowning, creating a risk of floor contamination spreading
- Maintenance activities bring tools, equipment, or personnel from outside the controlled area
- Adjacent areas operate at a lower cleanliness classification, creating a contamination gradient
Understanding which floor areas carry the most risk is the foundation of any effective contamination zone mapping exercise. Without this baseline, contamination control measures are placed reactively rather than strategically.
How do you identify contamination entry points in a controlled environment?
Contamination entry points in a controlled environment are identified by tracing every route through which people, materials, equipment, and air move from outside the controlled zone into it. Any location where that boundary is crossed is a potential entry point and should be assessed for contamination risk.
Start with a physical walkthrough of the facility, following the actual movement patterns of personnel and equipment rather than the theoretical flow shown on a floor plan. In practice, the routes people take and the surfaces they contact often differ from what was intended at the design stage. This walkthrough should cover:
- All personnel entry and exit doors, including emergency exits that may be used regularly
- Gowning rooms and airlocks, particularly the transition step between street footwear and cleanroom footwear
- Material transfer points, including pass-through hatches, loading bays, and goods-in areas
- Equipment and wheeled traffic routes, noting where wheels transition from uncontrolled to controlled flooring
- Utility access points such as maintenance hatches, cable routes, and HVAC service areas

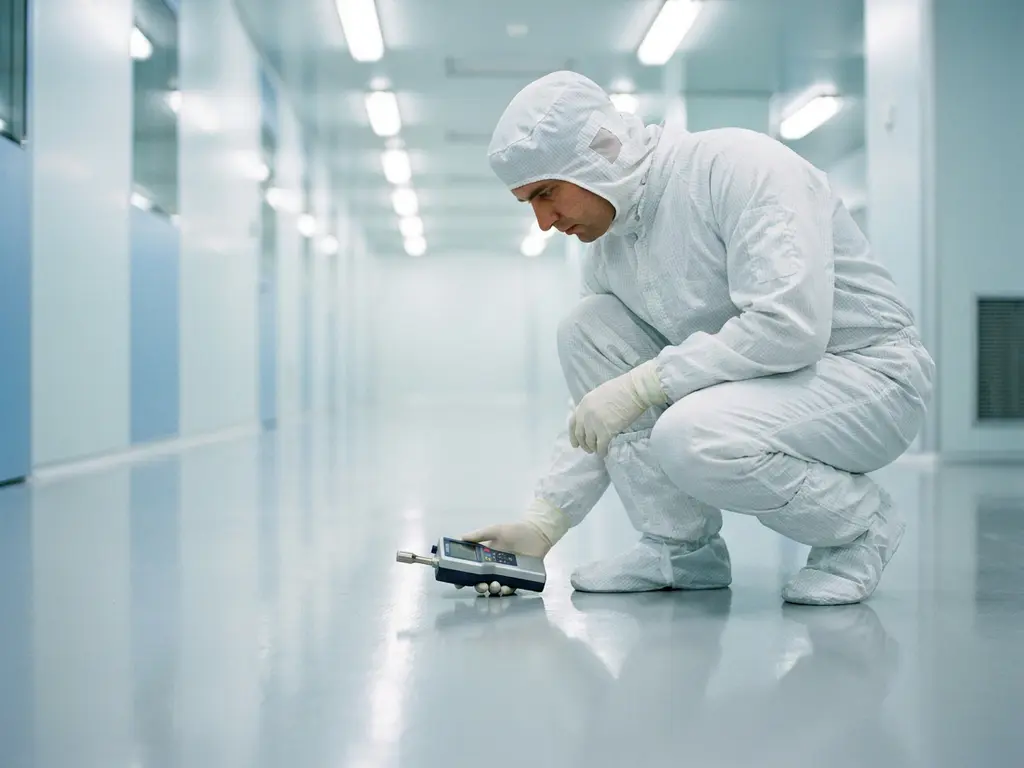

Environmental monitoring data, where available, provides additional evidence. Particle count readings, microbial settle plate results, and surface swab data taken over time can reveal patterns that point to specific entry locations. Correlating contamination events with personnel movements or delivery schedules helps confirm which entry points are the most active sources.
What tools and methods are used to map contamination zones?
Contamination zone mapping uses a combination of facility floor plans, environmental monitoring data, traffic flow analysis, and risk assessment frameworks to produce a visual and documented record of where contamination risk is concentrated on the cleanroom floor.
Floor plan annotation and zone classification
The starting point is an accurate floor plan of the facility, annotated to show classified zones, entry and exit points, and the movement routes of both personnel and equipment. Each zone is assigned a risk level based on its classification, proximity to critical operations, and traffic type. This creates a cleanroom floor plan that serves as the working document for all subsequent contamination control decisions.
Environmental monitoring and data analysis
Environmental monitoring programmes generate particle count, microbial, and surface contamination data over time. When this data is plotted against the floor plan, patterns emerge that confirm or challenge the initial risk assessment. High-risk contamination areas that appear in monitoring data but were not anticipated in the original plan should prompt a review of traffic routes and cleaning protocols.
Traffic flow studies, sometimes conducted using footfall counters or simple observation logs, add another layer of evidence. Areas with high pedestrian or wheeled traffic that were not initially flagged as high risk may need to be reclassified once actual usage patterns are understood. Together, these tools support a contamination risk assessment that is grounded in real operational data rather than assumptions.
How often should cleanroom contamination zone maps be reviewed?
Cleanroom contamination zone maps should be reviewed at least annually as part of a formal contamination control review, and additionally whenever there is a significant change to the facility layout, process, personnel flow, or equipment used within the controlled environment.
Annual reviews allow teams to incorporate a full cycle of environmental monitoring data, assess whether contamination incidents have clustered around specific zones, and confirm that control measures remain appropriate for current operations. In highly regulated industries such as pharmaceuticals and medical devices, this review is often tied to the change control process required under GMP and ISO standards.
Trigger-based reviews should be initiated when:
- A new production line, process, or piece of equipment is introduced
- Personnel numbers or shift patterns change significantly
- A contamination event or audit finding points to a gap in the current zone map
- The facility layout is modified, even temporarily
- New materials or components are introduced that change the nature of traffic through the facility
Treating the contamination zone map as a living document rather than a one-time exercise is essential for maintaining the accuracy of a cleanroom contamination control programme over time.
What contamination control measures should be placed at high-risk floor zones?
At high-risk floor zones, contamination control measures should physically intercept contaminants before they travel further into the controlled environment. The most effective approach layers multiple controls at each identified risk point, with floor-level capture as the primary mechanism.
At personnel entry points, the transition from uncontrolled to controlled footwear is the critical moment. Floor-level contamination capture at this point prevents particles carried on street shoes from being transferred to cleanroom footwear or directly onto the cleanroom floor. Reusable polymeric contamination control mats, positioned at the gowning step and at the entry to the controlled zone, provide consistent particulate capture for every person who enters.
For wheeled traffic routes, the challenge is greater because wheels cover more surface area and carry higher contamination loads. Dedicated mat systems engineered for heavy-wheeled traffic address this by capturing contaminants from wheels before equipment enters the controlled zone.
Additional measures at high-risk zones typically include:
- Defined gowning protocols with clear demarcation lines on the floor
- Regular cleaning schedules calibrated to the traffic volume at each zone
- Restricted access controls to limit the number of personnel crossing high-risk boundaries
- Colour-coded flooring or signage to reinforce zone boundaries and guide behaviour
How does cleanroom zoning connect to GMP and ISO compliance requirements?
Cleanroom zoning is a direct requirement under both GMP and ISO standards, which mandate that controlled environments are classified, monitored, and managed according to defined cleanliness levels. Contamination zone mapping supports compliance by providing documented evidence that risk has been assessed and that control measures are in place and proportionate to that risk.
Under EU GMP Annex 1 and equivalent FDA guidance, pharmaceutical manufacturers are required to demonstrate that their contamination control strategy addresses all identified risk points, including floor-level contamination at entry zones. ISO 14644, the international standard for cleanrooms and associated controlled environments, sets classification requirements that determine what contamination levels are acceptable in each zone and how monitoring should be conducted.
A well-documented cleanroom zoning programme supports compliance in several practical ways:
- It provides auditors with clear evidence that contamination risks have been systematically identified and assessed
- It creates a traceable record linking control measures to specific risk points on the floor plan
- It supports change control processes by establishing a baseline against which modifications can be evaluated
- It demonstrates that contamination control is managed proactively rather than reactively
For facilities operating across multiple regulatory frameworks, a single contamination zone map that references both GMP and ISO requirements reduces duplication and makes audit preparation more efficient. Controlled environment contamination management documented at zone level is increasingly expected by regulators as evidence of a mature quality system.
How Dycem helps with cleanroom contamination zone management
Dycem’s reusable contamination control mat systems are designed to address the highest-risk points identified through contamination zone mapping, providing consistent, validated particulate capture at every critical floor zone in the facility.
Dycem’s contamination control mat range includes solutions matched to the specific demands of each zone type:
- Dycem CleanZone mats are engineered for pedestrian and light-wheeled traffic at cleanroom entrances, gowning rooms, airlocks, and critical corridors, capturing up to 99.9% of shoe and wheel contaminants at the most sensitive entry points
- Dycem WorkZone mats handle heavy-wheeled traffic including forklifts and pallet trucks, providing reliable contamination control at the high-load zones that standard solutions cannot manage
- Dycem Floating Mats offer repositionable coverage for facilities with variable or temporary zone configurations, making them well suited to facilities where the contamination zone map is regularly updated
- All Dycem mats are reusable, built with integrated Biomaster antimicrobial protection, and carry a lifespan of three to five years, making them a more sustainable and cost-effective alternative to disposable sticky mats
Dycem’s contamination control specialists work consultatively with quality, EHS, and facilities teams to assess entry points, review existing floor plans, and recommend the right mat configuration for each identified risk zone. To discuss your facility’s contamination zone requirements, contact the Dycem team to arrange a free site survey.
